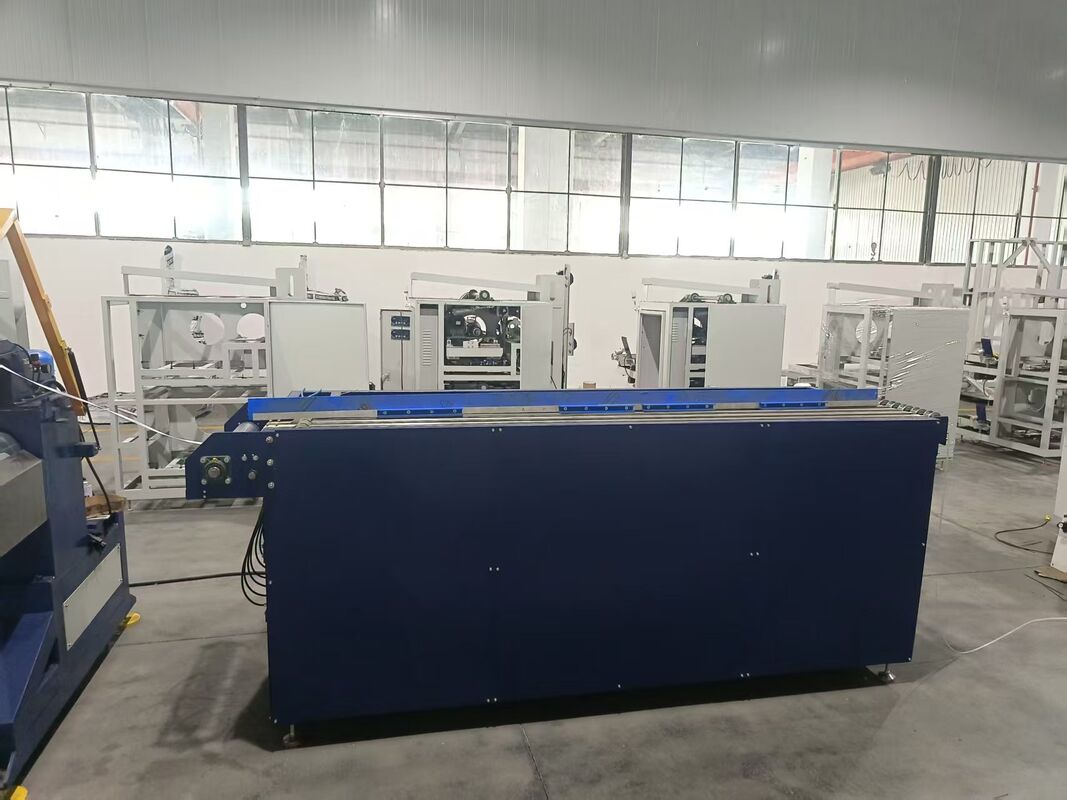

Polypropylene Strap Making Machine – Custom Sizes

This production line offers exceptional specification flexibility, with strap width freely adjustable from 5-19mm and thickness from 0.3-1.0mm. By changing between the 1-out-6 die (standard 5-13.5mm/6 strands) and optional die (13.5-19mm/4 strands), different width specifications can be quickly switched. Thickness adjustment is precisely controlled by adjusting the draw ratio (1.5-12x) and extrusion output. The equipment supports multiple recipe storage - different specifications can be switched simply by recalling corresponding parameters on the touch screen, paired with quick-release die changes. One machine meets diverse needs from light packaging to heavy-duty bundling, significantly reducing equipment investment and changeover costs.

• Adjustable width: 5-19mm range for light to heavy packaging needs
• Adjustable thickness: 0.3-1.0mm range for different strength grades
• Dual die configuration: Standard die (5-13.5mm/6) + optional die (13.5-19mm/4)
• Quick die change: Quick-release flange design for easy die replacement
• Recipe management: Multiple recipes for one-touch specification recall
• Precise thickness control: Via draw ratio and extrusion output adjustment
• One machine, multiple uses: Covers multiple specifications for diverse orders
• Reduced investment: One machine replaces multiple dedicated lines
• Fast changeover: Approx. 1-2 hours for die change and parameter adjustment
• Custom dies: Non-standard specifications available per customer requirements
